Schenker Watermaker Control Panels & Pumps
When choosing your watermaker it is important to pick a machine which also has the best control panel for your needs. There are 3 to choose from: Basic, Digital or Touch Control. Find out more about each control panel below and the options available for each Schenker.

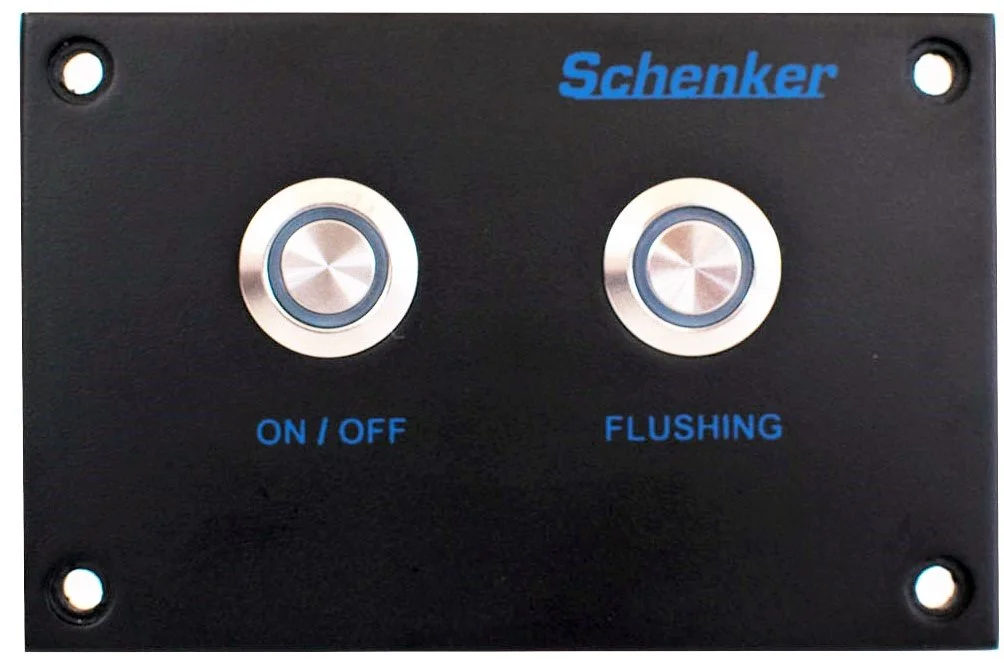

Basic Control Panel
The Basic Control Panel features are:
Start/Stop
Back Flush
Timer
The dimensions are 100 x 66mm
The Basic Control panel is available with the
ZEN 30, 50, 100 & 150.
Smart 30, 60, 80 & 100
Modular 35, 60 & 100.
The basic control panel is ideal for those who don’t want an overcomplicated control panel and for those who prefer to keep it simple.
Digital Control Panel
The Digital Control Panel features are:
Start/Stop
Back Flush
Timer
Automatic Flushing
Intensive Flushing
Periodic Flushing
Hours Counter
Automatic Start Up
Assisted Maintenance
Salinity Monitoring (Optional)
The dimensions are 115 x 135mm
The Digital Control panel is available with the
Smart 30, 60, 80 & 100
Modular 35, 60, 100, 150, 230, 300, 500
The Digital control allows the user to remotely control the functions of the watermaker. Available to fit on the above watermakers in the Schenker range. The digital control carries out basic functions such as turning the watermaker on and off and flushing via an electrovalve. Where it really comes into its own are the functions that allow pre-programmed periods of watermaking & flushing. Connection to tank gauges allow the watermaker to make water until the tank is full, where upon the watermaker will switch itself off.
Perhaps the most useful feature of the digital control is the pre-programmable automatic flushing. The watermaker can be programmed to turn itself on and carry out a fresh water flushing cycle unattended. This takes away the need for pickling the membranes with biocide. An example of this would be programming the watermaker to turn itself on every 10 days for a period of two minutes to flush with water from the vessel's tank.
Touch Control Panel
The Touch Control Panel features are:
Hours counter
Automatic start up
Assisted maintenance
Salinity monitoring (optional)
Flow meter (optional)
Pressure meter (optional)
Dimensions: 120x80mm
The dimensions are 120 x 80mm
The Touch Control panel is available with the
ZEN 100 & 150.
Smart 30, 60, 80 & 100
Modular 35, 60, 100, 150, 230, 300 & 500.
The touch control panel offers all of the features the digital control panel offers with addition to the optional extras of a flow meter and pressure meter. It has an updated design with a touch panel instead of the Digital button control panel. The touch control panel is also the only Digitalised panel available with the ZEN 100 or 150.
Schenker Watermaker Pumps
Find out about the different pump options for each water maker here.
You can also read more about Schenker Technology by clicking on the link.
Want to talk through installation options? Give us a call on 01934 517288 or contact us.
Power Flex
It is available for 100 litres per hour watermakers. The Power Flex supplies the watermaker with 24 dc and the 230 ac power. The 230 ac power is activated automatically when the generator is turned on.
Contact Us
Get in touch to discuss your needs and download the below press articles for more information.
