Schenker Zen Watermakers
Quiet, small, light efficient, inexpensive. Can be installed in all positions, horizontal as well as vertical.

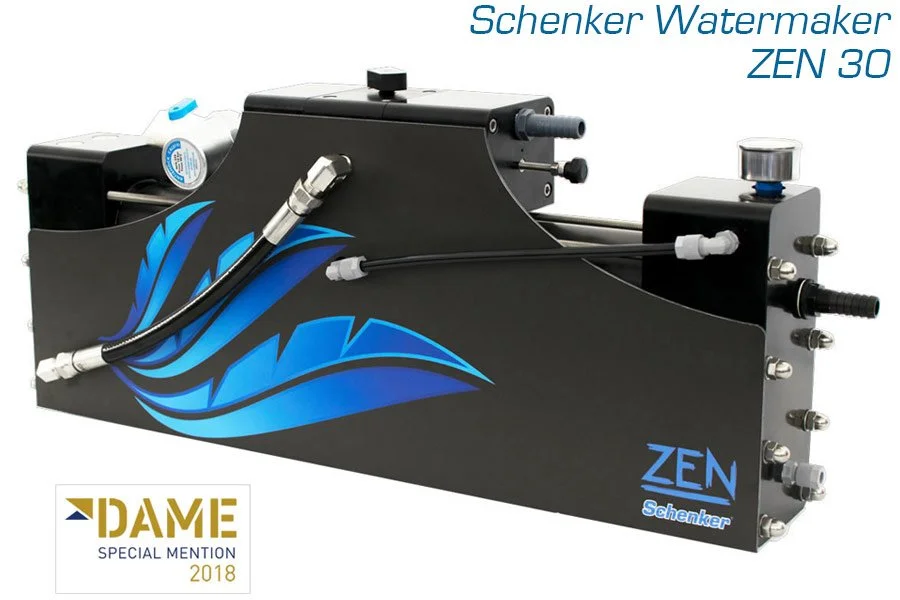

Schenker ZEN 30 Watermaker
-
Capacity: 30 lit/h
Power supply: 12 / 24 VDC
Consumption: 110 watt
Weight: 19 Kg Membranes n°1 2,5" x 21"
-
Watermaker fitted with Energy Recovery System

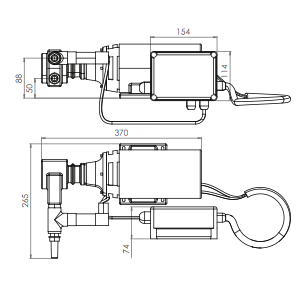

Feed pump with filter - PDF (technical drawings)
Active carbon filter with electrovalve
Net filter
Filters key
Non return valve
Fresh water hose (5 mt.)
Remote panel
Installation kit (assortment of fittings and screws)
Owner manual
-
Automatic pressure regulation
High pressure cut off
-
Remote start/stop
Watermaker flushing
Timer
Schenker watermaker Zen 30. New generation watermakers fitted with energy recovery system powered directly from the batteries.
Schenker ZEN 50 Watermaker
-
Capacity: 50 lit/h
Power supply: 12 / 24 VDC
Consumpition: 240 watt
Weight: 22 Kg
Membranes n°1 2,5" x 21"
-
Watermaker fitted with Energy Recovery System
Feed pump with filter - PDF (technical drawings)
Active carbon filter with electrovalve
Net filter
Filters key
Non return valve
Fresh water hose (5 mt.)
Remote panel
Installation kit (assortment of fittings and screws)
Owner manual
-
Automatic pressure regulation
High pressure cut off
-
Remote start/stop
Watermaker flushing
Timer
Schenker watermaker Zen 50. New generation watermakers fitted with energy recovery system powered directly from the batteries.
Schenker ZEN 100 Watermaker
-
Capacity: 100 lit/h
Power supply: 12 / 24 VDC or 230 VAC
Consumpition: 400 watt
Weight: 54 Kg
Membranes n°2 4" x 21"
-
Watermaker fitted with Energy Recovery System
Feed pump with filter - PDF (technical drawings)
Active carbon filter with electrovalve
Net filter
Filters key
Non return valve
Fresh water hose (5 mt.)
Remote panel
Installation kit (assortment of fittings and screws)
Owner manual
-
Automatic pressure regulation
High pressure cut off
Low pressure cut off
-
Basic Panel Features:
Remote start/stop
Watermaker flushing
Timer
Dimensions: 100x66mm
Touch Panel Features:
Hours counter
Automatic start up
Assisted maintenance
Salinity monitoring (optional)
Flow meter (optional)
Pressure meter (optional)
Dimensions: 120x80mm
Schenker watermaker Zen 100. New generation watermakers fitted with energy recovery system powered directly from the batteries.
Schenker ZEN 150 Watermaker
-
Capacity: 150 lit/h
Power supply: 24 VDC or AC
Consumpition: 600 watt
Weight: 54 Kg
Membranes n°2 4" x 21"
-
Watermaker fitted with Energy Recovery System
Feed pump with filter - PDF (technical drawings)
Active carbon filter with electrovalve
Net filter Filters key
Non return valve
Fresh water hose (5 mt.)
Remote panel
Installation kit (assortment of fittings and screws)
Owner manual
-
Basic Version:
Automatic pressure regulation
High pressure cut off
Low voltage cut off
Touch Version:
Automatic pressure regulation
High pressure block
Low pressure block
No cycling block
Low voltage block
-
Basic Panel Features:
Remote start/stop
Watermaker flushing
Timer
Dimensions: 100x66mm
Touch Panel Features:
Hours counter
Automatic start up
Assisted maintenance
Salinity monitoring (optional)
Flow meter (optional)
Pressure meter (optional)
Dimensions: 120x80mm
All components are integrated into the main manifolds and there are very few external components such as pipework and valves. These features make the Zen watermakers very compact, with special ultra flat design. Zen is designed to fit into tight spaces and can be installed in orientations, horizontal as well as vertical. Not much bigger than a briefcase!
Schenker ZEN Twin 200 Watermaker
-
Capacity: 200 lit/h
Power supply: 12 / 24 VDC or 230 VAC
Consumpition: 800 watt
Weight: 102 Kg
Membranes n°2 4" x 21"
-
Double watermaker fitted with Energy Recovery System
Double pump with filter
Double active carbon filter with electrovalve
Net filter
Filters key
Double non return valve
Fresh water hose (10 mt.)
Remote panel
Installation kit (assortment of fittings and screws)
Owner manual
-
Automatic pressure regulation
High pressure cut off
Low pressure cut off
No cycling cut off
Low voltage cut off
-

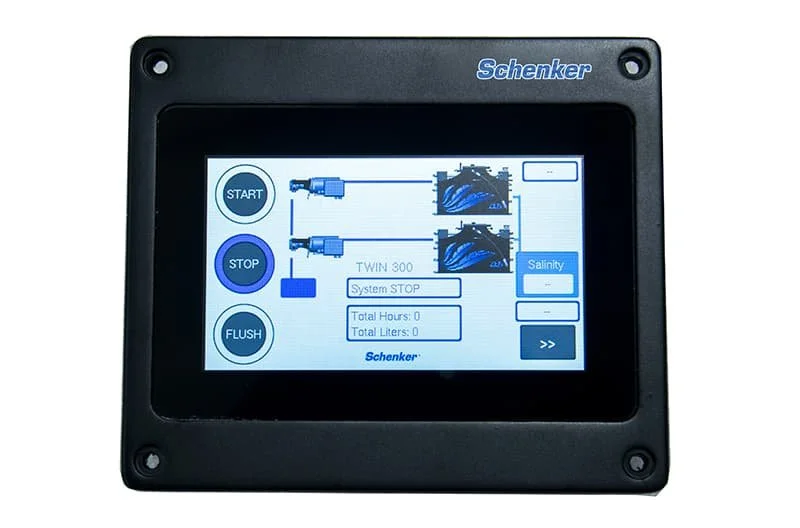

Touch Panel Features:
Hours counter
Automatic start up
Assisted maintenance
Salinity monitoring
Flow meter
Pressure meter
Dimensions: 120x80mm
The ZEN Twin is based on two independent watermakers controlled by a single remote touch panel, which offers the possibility to operate both or just one machine. The two units can also be powered with different power supplies. Maximum flexibility and redundancy. The ZEN Twin 200 also comes with the Full Monitoring Kit included.
Schenker ZEN Twin 300 Watermaker
-
Capacity: 300 lit/h
Power supply: 24 VDC or AC
Consumpition: 1.2 Kwatt
Weight: 120 Kg
Membranes n°2 4" x 21"
-
Double watermaker fitted with Energy Recovery System
Double pump with filter
Double active carbon filter with electrovalve
Net filter
Filters key
Double non return valve
Fresh water hose (10 mt.)
Remote panel
Installation kit (assortment of fittings and screws)
Owner manual
-
Automatic pressure regulation
High pressure cut off
Low pressure cut off
No cycling cut off
Low voltage cut off
-
Touch Panel Features:
Hours counter
Automatic start up
Assisted maintenance
Salinity monitoring
Flow meter
Pressure meter
Dimensions: 120x80mm
The ZEN Twin is based on two independent watermakers controlled by a single remote touch panel, which offers the possibility to operate both or just one machine. The two units can also be powered with different power supplies. Maximum flexibility and redundancy. The ZEN Twin 300 also comes with the Full Monitoring Kit included.
