Schenker Aquatrek Watermakers

Aquatrek is an efficient, portable solution to produce fresh water basically from any source, lakes, rivers, ponds, sea.

Aquatrek is built into a tough military grade case, that includes the watermaker itself, the prefilter and the connection hoses to the water source (10 mt. long). Aquatrek is available in 2 versions, Aquatrek 30, that produces 30 lit/h of fresh water with an electric consumption of 110 watt only, and Aquatrek 50, that produce 50 lit/h with an electric consumption of 240 watt. Both units are powered 12 V and can be connected to any external battery.

Schenker Aquatrek 30

Aquatrek is an efficient, portable solution to produce fresh water basically from any source, lakes, rivers, ponds, sea.

  • Capacity: 30 LIT/H

  • Power Supply: 12 VDC

  • Consumption: 100 W - 9 A

  • Weight: 38 Kg - 84 lb

  • Membranes: n. 1 2.5" x 21"

  • Filters: 50 mesh strainer - 5 micron melt blown 5" x 2½"

  • Inlet Hose: i.d. 16mm length 10mt

  • Discharge Hose: i.d. 16mm length 5mt

  • Permeate Hose: i.d. 6mm length 5mt

  • Suction Capacity: Horizontal 10mt - Vertical 1mt

Schenker Aquatrek 50

Aquatrek is an efficient, portable solution to produce fresh water basically from any source, lakes, rivers, ponds, sea.

  • Capacity: 50 LIT/H

  • Power Supply: 12 VDC

  • Consumption: 240 W - 20 A

  • Weight: 48 Kg - 106 lb

  • Membranes: n. 2 2.5" x 21"

  • Filters: 50 mesh strainer - 5 micron melt blown 5" x 2½"

  • Inlet Hose: i.d. 16mm length 10mt

  • Discharge Hose: i.d. 16mm length 5mt

  • Permeate Hose: i.d. 6mm length 5mt

  • Suction Capacity: Horizontal 10mt - Vertical 1mt

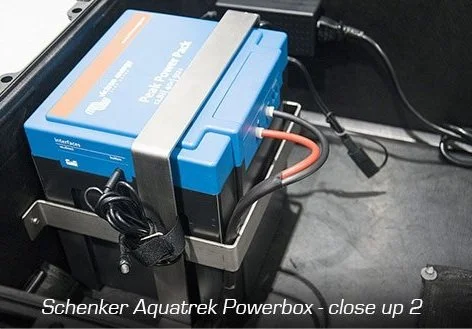

Aquatrek Powerbox

The Aquatrek PowerBox is an ideal complement of both Aquatrek 30 and 50. It is assembled in a strong suitcase as well, and includes a special Lithium battery, a charger that can accept all DC/AC standards to activate the recharging cycle of the battery with a folding solar panel that allows charging the battery, and to power the watermakers, directly from the sun.

  • Battery Type: Battery type Lithium-ion (LiFePO4)

  • Capacity: 40 Ah

  • Stored Energy: 512 Wh

  • Nominal Voltage: 12.8 V

  • Weight: 25 Kg

  • Safety Features: Overload | Short-circuiting | Temperature | Excessive discharge

  • Power: 120 Watt Voltage: 12 VDC Cells: 3×12 Dimension Unfolded: 1280 x 540 mm

  • External dimensions: 816 x 540 x H306 mm

  • Certified matching the STANAG 4280 and DEF-STAN 81-41 requirements. The STANAG 4280 and DEF-STAN 81-41 standards for military use are embraced by the NATO (North Atlantic Treaty Organisation) countries.
